I CONTAINMENT PALLETS I

INTRODUCING A STRONGER ALTERNATIVE TO PLASTIC CONTAINMENT.
NFPA 30, and IFC require secondary containment to be of non-combustible construction
and compatible with the material being stored.
STEEL Spill Containment Pallets are compatible with hydrocarbons and will NOT MELT
under fire exposure or FAIL from normal material handling activities.

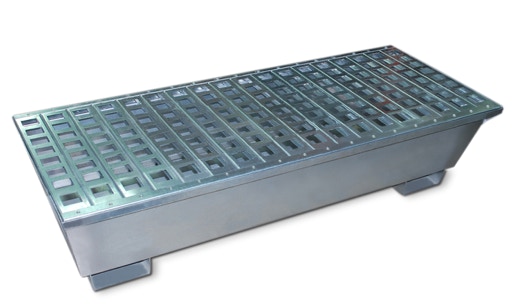

2 DRUM - Steel Spill Containment Pallet

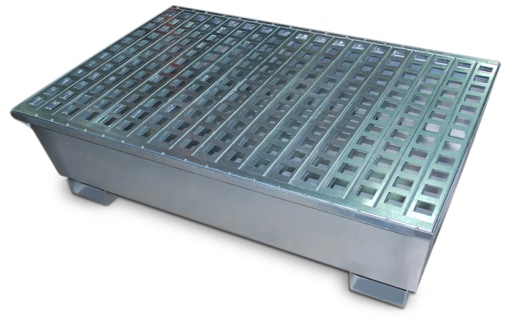

4 DRUM - Steel Spill Containment Pallet

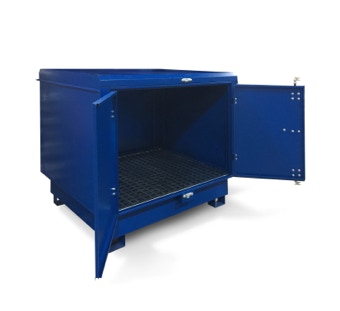

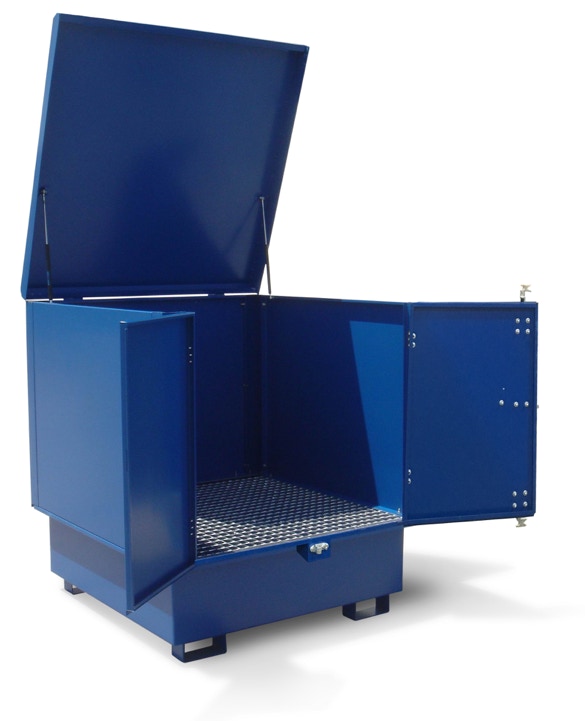

4 DRUM - OUTDOOR Steel Spill Containment Pallet

• 14 gauge galvanized steel
• 250 PSF loading, 68 gal. capacity
• Shipping weight: 165 pounds
• 100% tested leak free
• Removable grating
• 31.5" x 47.25" x 17.6" h
Item#: 30QAY0812-W

• 14 gauge galvanized steel
• 250 PSF loading, 68 gal. capacity
• Shipping weight: 195 pounds
• 100% tested leak free
• Removable grating
• 47.25" x 47.25" x 13.25"h
Item#: 30QAY1212-W

• 14 gauge painted steel
• 250 PSF loading, 68 gal. capacity
• Shipping weight: 600 pounds
• 100% tested leak free
• Hydraulic lid w/52" door opening
• 61.25” x 53.75” x 52”
Item#: 30QAYFT1413-W

SINGLE - IBC Containment	SINGLE - IBC OUTDOOR STORAGE	DOUBLE - IBC Containment	DOUBLE - IBC OUTDOOR STORAGE

• 14 gauge galvanized steel • 250 PSF loading, 370 gal. capacity • Shipping weight: 375 lbs • 100% tested leak free • Removable Grating • 57" x 57" x 35"h Item#: 3OQAYIBC1400-W	• 14 Ga.Painted Sump, 16 ga. Galvanized Top • 250 psf loading, 370 gal. capacity • Shipping weight: 660 lbs • 16 Gauge top • 1 Lockable door 52"w x 51"h • 57" x 57" x 85"h Item#: 30QAYIBC1400CS-W	• 14 gauge galvanized steel • 250 PSF loading, 370 gal. capacity • Shipping weight: 505 lbs • 100% tested leak free • Removable Grating • 57" x 105" x 24"h Item#: 3OQAYIBC1400D-W	• 14 ga. Painted sump, 16 ga. galvanized top • 250 psf loading, 370 gal. capacity • Shipping weight: 970 lbs • 100% tested leak free • 2 Lockable doors w/-104 ¾'' x 48 ¾'' opening • Exterior: 124'' x 67'' x 74'' h • Interior : 61'' x 117 ¾'' x 52 ½'' h Item#: 30QAYIBC1400CD-W

IOUTDOOR CONTAINMENT SHELTERSI

INTRODUCING THE MOST COST EFFICIENT CHEMICAL SHELTERS
ON THE MARKET !
NFPA 30, and IFC require secondary containment to be of non-combustible construction
and compatible with the material being stored.
STEEL Containment Shelters are compatible with hydrocarbons and will NOT MELT
under fire exposure or FAIL from normal material handling activities.

Specifications
• 100% Galvanized
• Lockable door
• Spill containment floor
• Natural vents

Available Sizes
• 7' x 10' (Item#: 30QAYHAZ0710-W)
385 US gallons. 12 drums
1430 lbs including grate, no shelves

• 7' x 13' (Item#: 30QAYHAZ0713-W)
500 US gallons. 16 drums
  1695 lbs including grate, no shelves

• 7' x 16' (Item#: 30QAYHAZ0716-W)
615 US gallons. 20 drums
  1960 lbs including grate, no shelves

• 7' x 20' (Item#: 30QAYHAZ0720-W)
760 US gallons. 24 drums
  2,222 lbs including grate, no shelves

* All units require assembly

Units are collapsed for shipping to save you money on transportation !

Quatrex containment shelters Collapsible Single Unit

Quatrex containment shelters 6 Units Stacked for Shipping

   • All units are shipped unassembled
   • Up to 5 units per stack
   • Stacks are 15” high if purchased individually

I TWO LEVEL PALLETS I

ECONOMICAL PALLET STORAGE ON TWO LEVELS

NFPA 30, and IFC require secondary containment to be of non-combustible construction
and compatible with the material being stored.
STEEL Spill Containment Pallets are compatible with hydrocarbons and will NOT MELT
under fire exposure or FAIL from normal material handling activities.

4 PALLETS OF STORAGE

14-16 gauge painted galvanized construction
2 levels high, 4 pallets of storage (2 per level),
Sliding lockable doors.

Spill containment floor - Natural vents - Containment sump with grating on both levels.

Item #: 30QY 2800

8 PALLETS OF STORAGE

14-16 gauge painted galvanized construction
2 levels high, 8 pallets of storage (2 per level),
Sliding lockable doors.

Spill containment floor - Natural vents - Containment sump with grating on both levels.

Item #: 30QY 5600

THE DIFFERENCE STEEL MAKES

	14 gauge galvanized Outdoor or Indoor STEEL Spill Pallets afford the RIGHT protection as required for the spill control and containment provisions of the fire codes and the environmental protection requirements.
