IBC CONTAINMENT PRODUCTS

IBC SPILL PALLETS


A STRONGER ALTERNATIVE TO PLASTIC CONTAINMENT

NFPA 30, and IFC require secondary containment to be of non-combustible construction

and compatible with the material being stored.

STEEL Spill Containment Pallets are compatible with hydrocarbons and will NOT MELT

under fire exposure or FAIL from normal material handling activities.

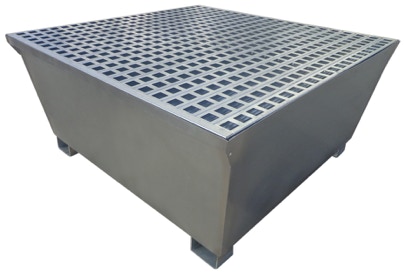

SINGLE - IBC

• 14 gauge galvanized steel

• 250 PSF loading,
  370 gal. capacity

• Shipping weight: 375 lbs

• 100% tested leak free

• Removable Grating

• 57" x 57" x 35"h

Item#: 3OQAYIBC1400-W

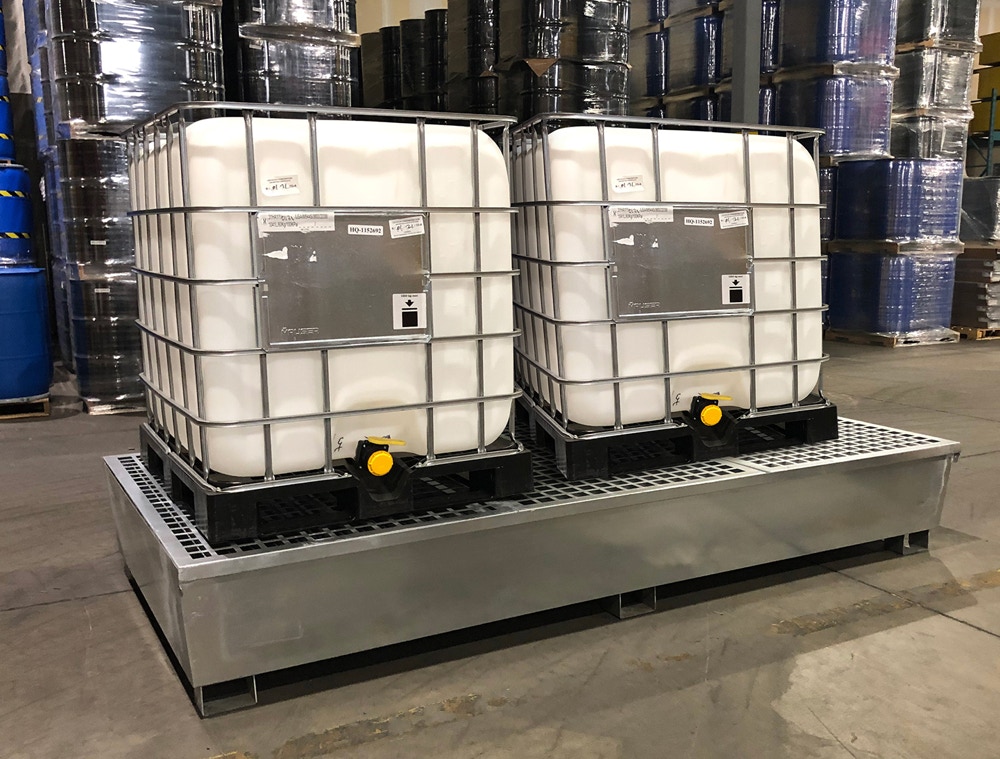

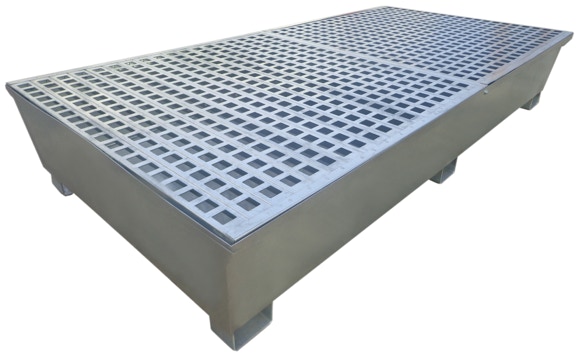

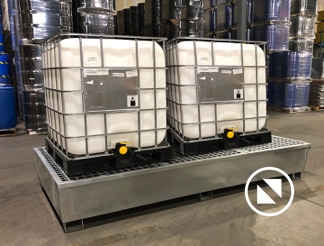

DOUBLE - IBC

• 14 gauge galvanized steel

• 250 PSF loading,
  370 gal. capacity

• Shipping weight: 505 lbs

• 100% tested leak free

• Removable Grating

• 57" x 105" x 24"h

Item#: 3OQAYIBC1400D-W

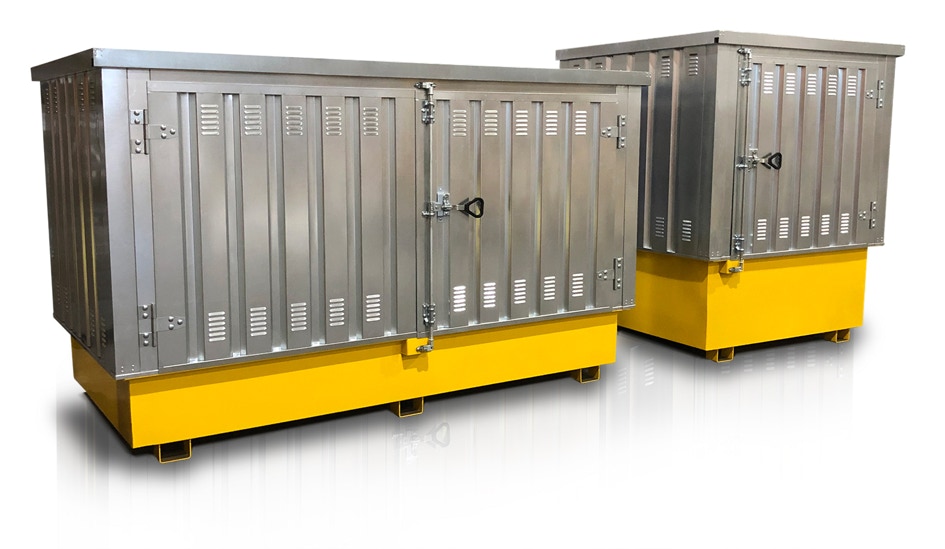

IBC OUTDOOR STORAGE

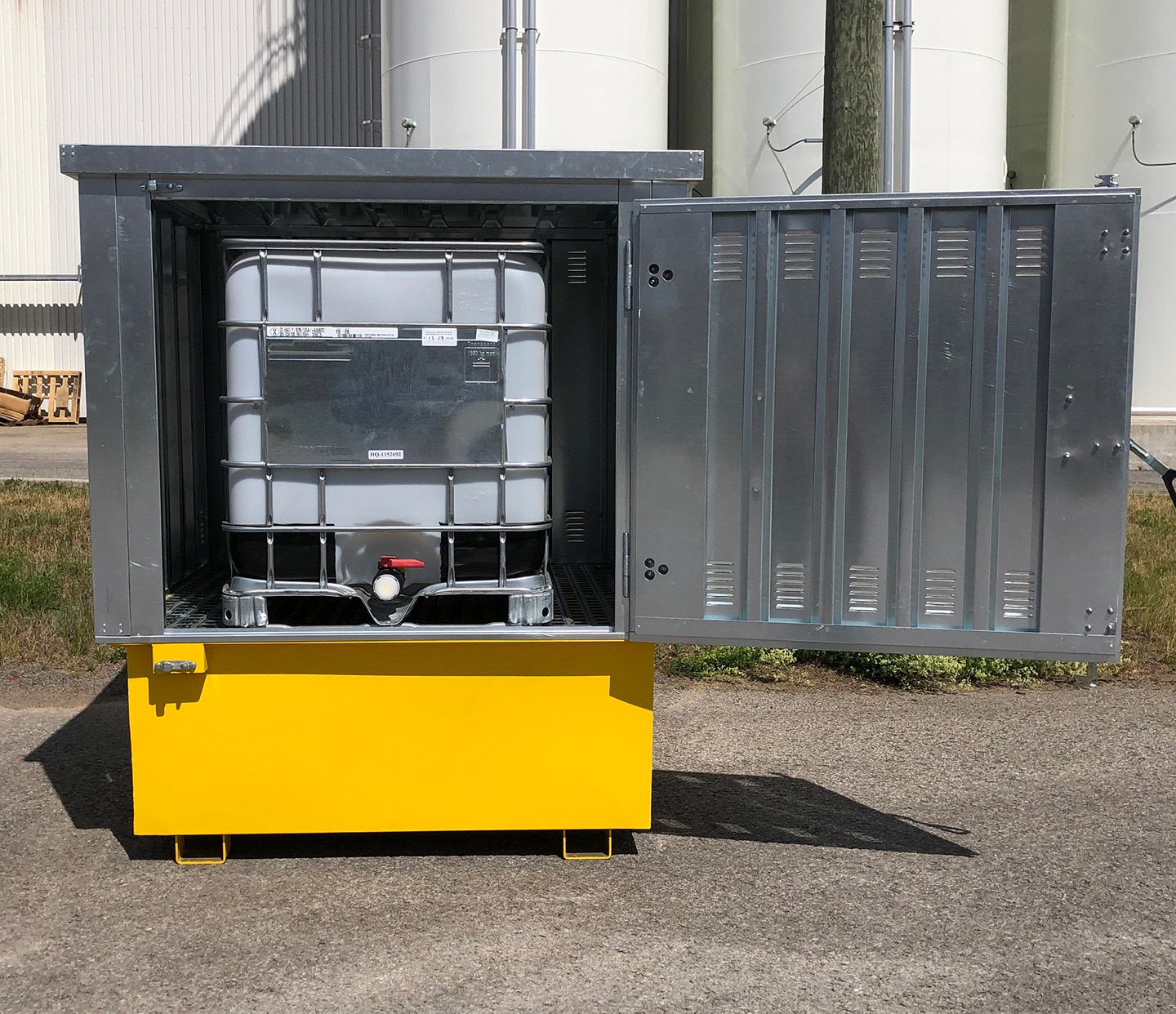

SINGLE - IBC OUTDOOR STORAGE

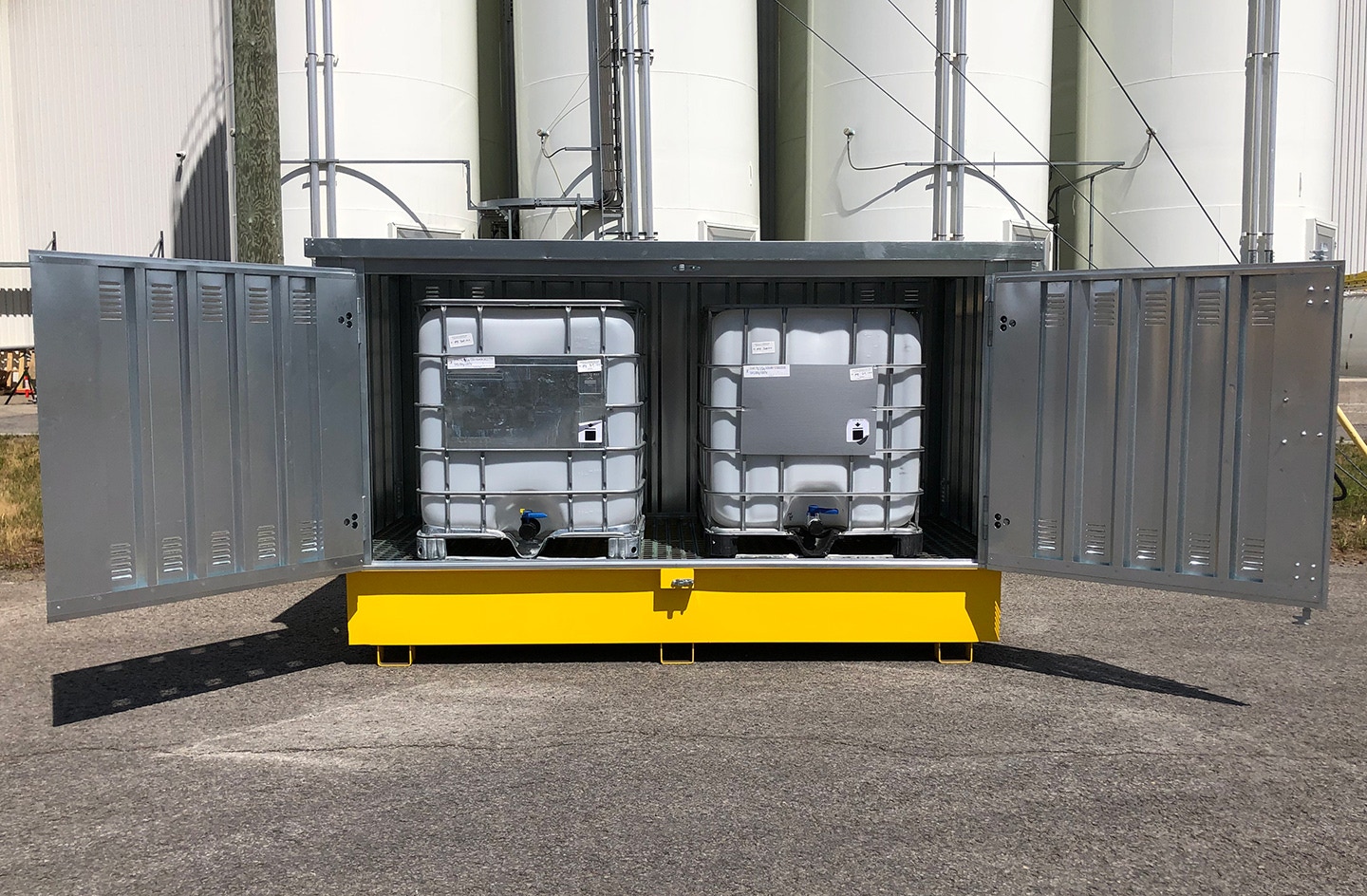

DOUBLE - IBC OUTDOOR STORAGE

• 14 Ga.Painted Sump

•16 ga. Galvanized Top

• Shipping weight: 660 lbs

• Interior : W - 71.4”  L - 69.4” H -65.02”

• Exterior : W - 77.9”  L - 75.8” H - 94.7”

• Door : L - 55” H - 61.1”

• Sump: V (gal) - 370

Item#: 30QAYIBC1400CS-W

• 14 ga. Painted sump,
• 16 ga. Galvanized Top

• Shipping weight: 970 lbs

• Interior:
   W - 71.4”  L - 117.3”  H - 65.02”

• Exterior :
   W - 75.8”  L - 123.6”  H - 84.8”

• Door : L - 104.52” H - 61.1”

• Sump: V (gal) - 370

  Item#: 30QAYIBC1400CD-W
